Phoenix Elite

Description

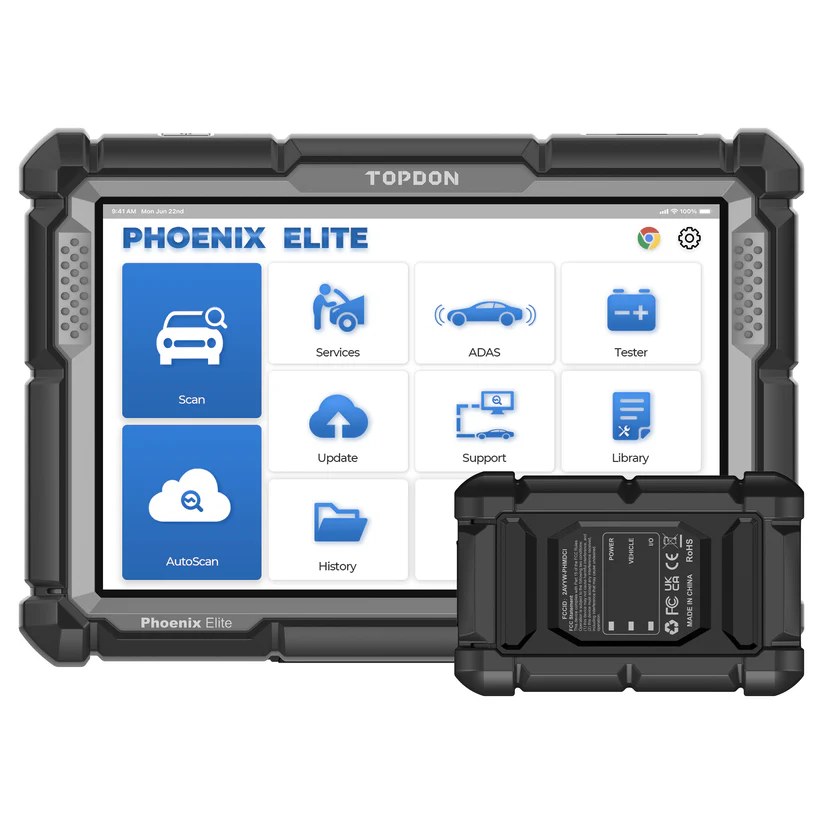

The Phoenix Elite is a professional‑grade automotive diagnostic tablet designed for workshops and technicians who require near‑OEM level functionality at a more flexible cost. Some of the key features and capabilities:

• Large 10.1″ touchscreen (1280×800) running Android 10, with a 4‑core 2.0 GHz processor, 4 GB RAM / 64 GB storage. TOPDON LA+2topdon.pl+2

• Supports wireless VCI interface and latest vehicle communication protocols including CAN‑FD (important for newer vehicles) TOPDON LA+1

• Includes topology mapping of the vehicle’s ECU network: visual representation of modules, communication status, colour‑coded, helping diagnose communication faults. topdon.pl+1

• Full‑system diagnostics: read/clear codes, live data, active tests/actuator tests, initialisations, coding, adaptations, memory resets. Toptool+1

• Online coding and cloud‑based programming for many major brands (e.g., OEM‑level coding support) for selected vehicles. Toptool

• Auto‑VIN detection (vehicle detection) & auto‑detect of systems to speed up workflow. Topdon France+1

• Pre‑Scan and Post‑Scan report functionality — allows you to record vehicle condition before repair and after repair. Nice for customer transparency or insurance documentation. Toptool

• Expandable with ADAS calibration support: compatible with external ADAS kit so the Phoenix Elite can be used for advanced driver assistance system calibration (with the add‑on module). TOPDON LA+1

• Wide language support: Multilingual interface (24 languages on some listings) so suitable for multi‑region usage. topdon-shop.com+1

Technical specs (summary):

• Operating voltage: 9‑18 V (indicative of standard 12V systems) TOPDON LA

• Storage/working temperature: storage −20°C to +60°C; working 0°C to +50°C. topdon-shop.com

• Dimensions approx 278×191×48 mm (approx 10.94″ × 7.52″ × 1.89″) topdon.hr

🎯 Ideal Use‑Case

The Phoenix Elite is very well suited for professional workshops servicing modern passenger vehicles and light commercial vehicles (cars, vans) from multiple brands — especially European, American and Asian makes. With its advanced features like coding and ADAS calibration, it is aimed at higher‑level diagnostics, not just basic code reading.

⚠️ Things to Note / Limitations

• Though very capable, its voltage spec (9‑18 V) indicates it is geared for 12V systems found in standard cars and light vehicles. This suggests it may not be inherently suited (without add‑ons) for heavy‑duty trucks that use 24 V systems or specialised truck protocols.

• Coding functions and cloud‑programming may have restrictions by brand/model/year — always check coverage for your specific vehicle.

• The ADAS calibration capability is optional (requires external kit/add‑on) rather than built‑in.

• As with many professional tools, software updates and brand support may depend on subscription or licensing — check the terms.
